LEGRAND 028624 028624 LEGRAND DMX3 2500 N FIXED 3POLOS 1600 TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028624 LEGRAND DMX3 2500 N FIXED 3POLOS 1600 TO

028624

028624

LEGRAND

1 Pcs.

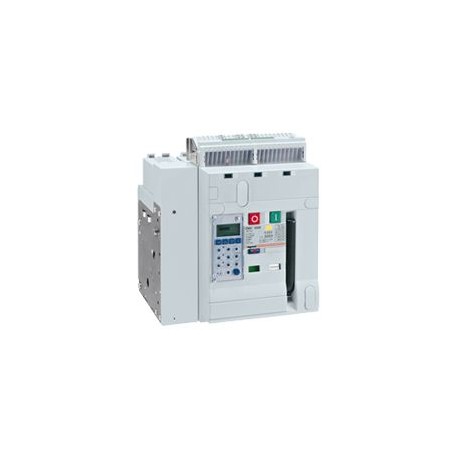

DMX3 2500 N FIXED 3POLOS 1600 TO Air circuit breaker DMX³ 2500 lcu 50 kA - fixed version - 3P - 1600 A DMX³ 2500 Open Frame Automatic Switch - Fixed - 50kA - 3P - 1600A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 028624 DMX3 2500 N FIXED 3POLOS 1600 TO is a heavy-duty air circuit breaker engineered for high-current electrical infrastructure and main switchboards. Large-scale power installations rely on these robust units to manage major electrical loads and provide reliable fault interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP30
  • Adjustment range undelayed short-circuit release: 3200 A
  • Integrated earth fault protection: Yes
  • With integrated under voltage release: Yes
  • Suitable for DIN rail (top hat rail) mounting: No
  • Device construction: Built-in device fixed built-in technique
  • Number of poles: 3
  • Overload release current setting: 640 A
  • Motor drive integrated: Yes
  • Type of control element: Push button
  • Rated permanent current Iu: 1600 A
  • With switched-off indicator: Yes
  • Motor drive optional: Yes
  • Position of connection for main current circuit: Back
  • Rated voltage: 230 V
  • DIN rail (top hat rail) mounting optional: No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)55 400.00
Product characteristics
Fixed version
  • Supplied with
    • 4 auxiliary contacts: NO/NC
    • rear terminals for horizontal connection with bars
    • door sealing
DMX³ - N 2500
  • Breaking capacity Icu 50 kA (415 V~)
  • Frame 2500
  • 3P
  • In : 1600 A
General characteristics
Air circuit breakers DMX³ 2500 and 4000 - from 800 to 4000 A
  • Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
