028535 LEGRAND DMX3 4000N 1000V SECC 4P 2000A
028535
028535
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

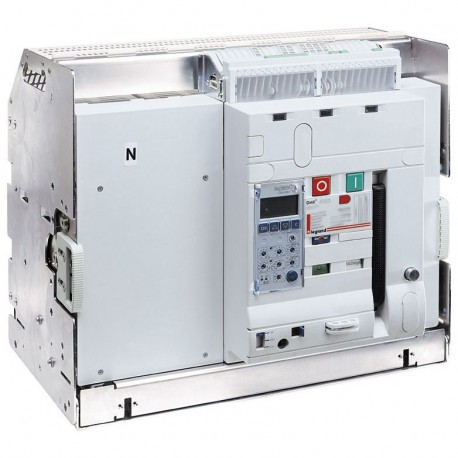

A Legrand DMX3 4000N 1000V SECC 4P 2000A is a heavy-duty air circuit breaker engineered to protect large-scale industrial electrical distribution systems from overloads and short circuits. Units of this class provide essential main-feeder isolation, fault interruption, and circuit protection in commercial or heavy industrial power architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP): IP30
- Adjustment range undelayed short-circuit release: 4000 A
- Integrated earth fault protection: No
- With integrated under voltage release: No
- Suitable for DIN rail (top hat rail) mounting: No
- Device construction: Built-in device slide-in technique (withdrawable)
- Number of poles: 4
- Type of electrical connection of main circuit: Bolt connection
- Overload release current setting: 800 A
- Motor drive integrated: No
- Type of control element: Push button
- Rated permanent current Iu: 2000 A
- With switched-off indicator: Yes
- Motor drive optional: Yes
- Position of connection for main current circuit: Back
- Rated voltage: 800 V
