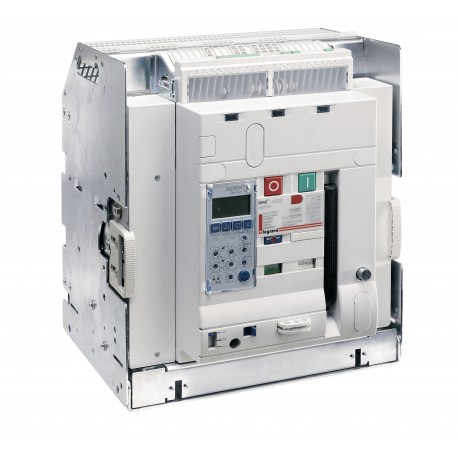

028525 LEGRAND DMX3 4000N 1000V SECC 3P 2000A
028525
028525
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A high-performance slide-in circuit breaker, the 028525 LEGRAND DMX3 4000N 1000V SECC 3P 2000A protects electrical systems operating at elevated voltage thresholds. Heavy industrial facilities and power generation plants utilize such devices to maintain network stability and safely interrupt hazardous short-circuit currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 4000 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): No
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device slide-in technique (withdrawable)
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Overload release current setting (EF002336): 800 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 2000 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 800 V
