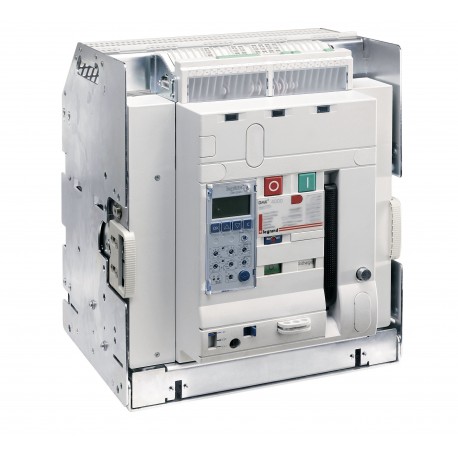

028524 LEGRAND DMX3 4000N 1000V SECC 3P 1600A

028524

028524

LEGRAND

1 Pcs.

DMX3 4000N 1000V SECC 3P 1600A Open frame circuit breaker DMX³ 4000 - sectionable - size 2 - 3P- In: 1600A - 1000Vac - Icu 50kA DMX³ 4000 Open Frame Automatic Switch - secc - 3P - 1600A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand air circuit breaker, referenced as 028524 LEGRAND DMX3 4000N 1000V SECC 3P 1600A, is designed for high-voltage industrial installations requiring robust protection against electrical faults. It ensures safe interruption of substantial currents to protect facility distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Adjustment range undelayed short-circuit release (EF007131): 3200 A
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Overload release current setting (EF002336): 640 A
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 1600 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): Yes
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 800 V

More info

▲

Product features

DMX³ 4000 open frame circuit breaker for photovoltaic, wind and railway applications - Sectional version - Size 2 - 3 Poles - In: 1600A - 1000Vac - Icu 50kA. In accordance with IEC 60947-2.

General features

DMX³ 4000 - 1000Vac - Open frame circuit breakers from 630 to 4000 A - Open frame switches allow protection and control at the entrance of the installation in specific sectors such as wind, photovoltaic and railway, which need to operate with voltages up to 1000V of alternating current - These products must be ordered with a protection unit (factory mounting) - They are supplied with 4 auxiliary contacts NA /NC, 1 door joint, rear connections for horizontal connection (fixed version) or for flat connection (sectionable version), and sectionable base and kit (sectional version only).

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
