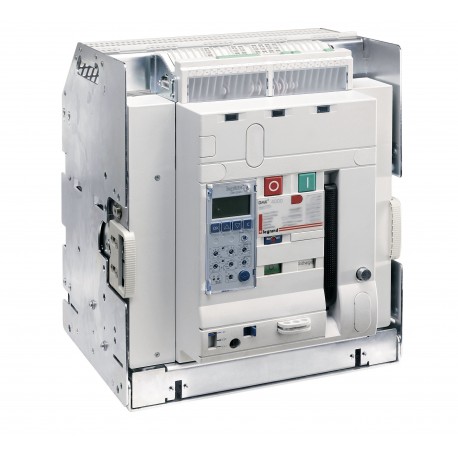

028520 LEGRAND DMX3 4000N 1000V SECC 3P 630A
028520
028520
LEGRAND
1 Pcs.
DMX3 4000N 1000V SECC 3P 630A
DMX³ 4000 Open Frame Circuit Breaker - Sectionable - Size 2 - 3P- In: 630A - 1000Vca - Icu 50kA
DMX³ 4000 Open Frame Automatic Switch - secc - 3P - 630A
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This equipment is a Legrand DMX3 4000N 1000V SECC 3P 630A withdrawable air circuit breaker designed for heavy-duty electrical switching and system isolation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 1260 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): No
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device slide-in technique (withdrawable)
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Overload release current setting (EF002336): 252 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 630 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 800 V
