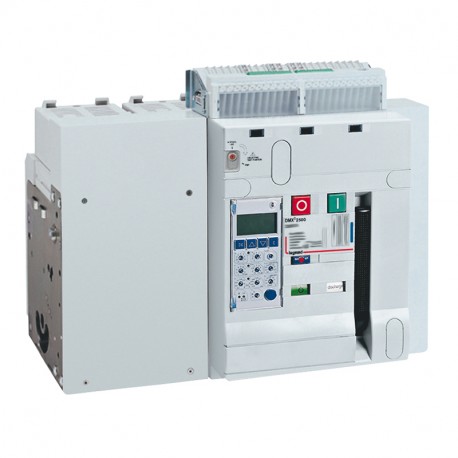

028517 LEGRAND DMX3 4000N 1000V FIXED 4P 3200A
028517
028517
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand supplied the 028517 LEGRAND DMX3 4000N 1000V FIXED 4P 3200A as a heavy-duty circuit-breaker designed for high-capacity electrical distribution. Large-scale power installations rely on these robust switching devices to interrupt high fault currents and protect main distribution networks from damage.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 6400 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): No
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Overload release current setting (EF002336): 1280 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 3200 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 800 V
