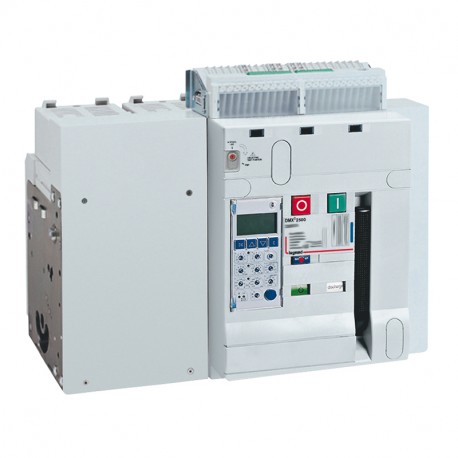

028514 LEGRAND DMX3 4000N 1000V FIXED 4P 1600A
028514
028514
LEGRAND
1 Pcs.
DMX3 4000N 1000V FIXED 4P 1600A
DmX³ 4000 Open Frame Circuit Breaker - Fixed - Size 2 - 4P- In: 1600A - 1000Vac - Icu 50kA
DMX³ 4000 Open Frame Automatic Switch - Fixed - 4P - 1600A
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
DMX³ 4000 open frame circuit breaker for photovoltaic, wind and railway applications - Fixed version - Size 2 - 4 Poles - In: 1600A - 1000Vac - Icu 50kA. In accordance with IEC 60947-2.General features
DMX³ 4000 - 1000Vac - Open frame circuit breakers from 630 to 4000 A - Open frame switches allow protection and control at the entrance of the installation in specific sectors such as wind, photovoltaic and railway, which need to operate with voltages up to 1000V of alternating current - These products must be ordered with a protection unit (factory mounting) - They are supplied with 4 auxiliary contacts NA /NC, 1 door joint, rear connections for horizontal connection (fixed version) or for flat connection (sectionable version), and sectionable base and kit (sectional version only).| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| Adjustment range undelayed short-circuit release (EF007131) | 3200 A |
| Integrated earth fault protection (EF007296) | No |
| With integrated under voltage release (EF001390) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Overload release current setting (EF002336) | 640 A |
| Motor drive integrated (EF006697) | No |
| Adjustment range short-term delayed short-circuit release (EF007129) | 960 A |
| Type of control element (EF006976) | Push button |
| Rated permanent current Iu (EF001389) | 1600 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | Yes |
| Position of connection for main current circuit (EF006671) | Back |
| Rated voltage (EF003977) | 800 V |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Complete device with protection unit (EF008906) | No |
