View larger
Images are for illustrative purposes only. Please refer to data sheet for details
028508 LEGRAND
028508
028508
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection

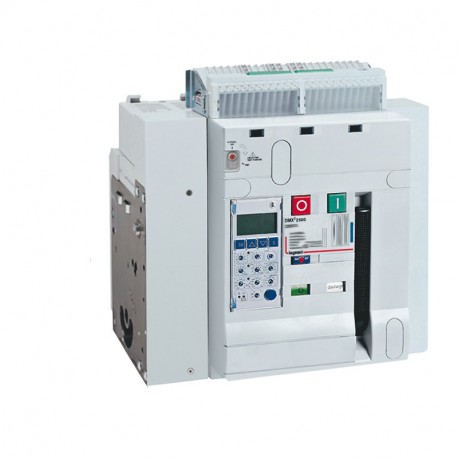

OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| Adjustment range undelayed short-circuit release (EF007131) | 8000 A |
| Integrated earth fault protection (EF007296) | No |
| With integrated under voltage release (EF001390) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Overload release current setting (EF002336) | 1600 A |
| Motor drive integrated (EF006697) | No |
| Adjustment range short-term delayed short-circuit release (EF007129) | 2400 A |
| Type of control element (EF006976) | Push button |
| Rated permanent current Iu (EF001389) | 4000 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | Yes |
| Position of connection for main current circuit (EF006671) | Back |
| Rated voltage (EF003977) | 800 V |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Complete device with protection unit (EF008906) | No |
