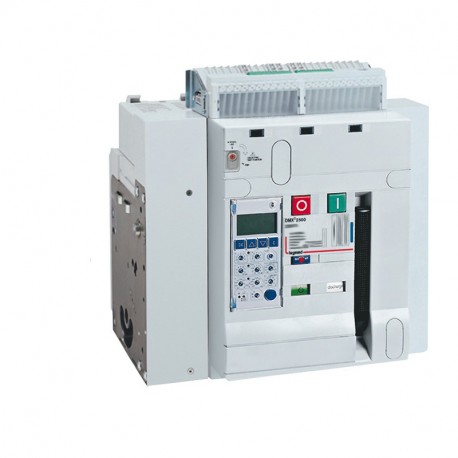

028507 LEGRAND DMX3 4000N 1000V FIXED 3P 3200A
028507
028507
LEGRAND
1 Pcs.
DMX3 4000N 1000V FIXED 3P 3200A
DMX³ 4000 Open Frame Circuit Breaker - Fixed - Size 2 - 3P- In: 3200A - 1000Vac - Icu 50kA
DMX³ 4000 Open Frame Automatic Switch - Fixed - 3P - 3200A
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A high-power air circuit breaker offers robust fault interruption and circuit isolation for large-scale industrial electrical distribution infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 6400 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): No
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Overload release current setting (EF002336): 1280 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 3200 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 800 V
