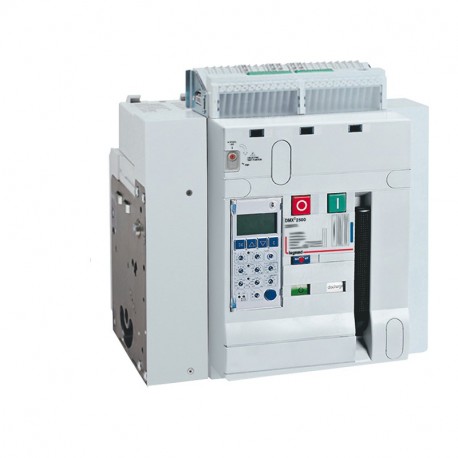

028504 LEGRAND DMX3 4000N 1000V FIXED 3P 1600A
028504
028504
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 028504 DMX3 4000N 1000V FIXED 3P 1600A is a high-capacity air circuit-breaker engineered for heavy-duty industrial power distribution. These units are deployed in main switchboards to handle large electrical loads and protect infrastructure against catastrophic fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 3200 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): No
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Overload release current setting (EF002336): 640 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 1600 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 800 V
