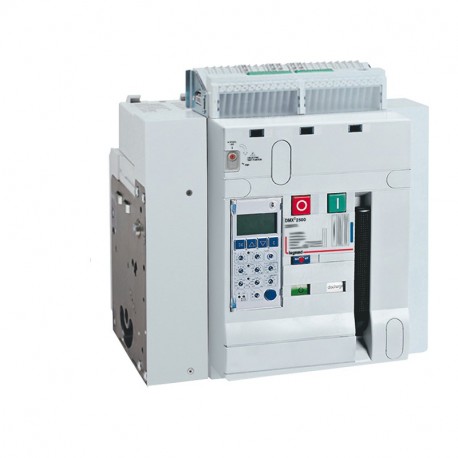

028500 LEGRAND DMX3 4000N 1000V FIXED 3P 630A
028500
028500
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand air circuit breaker, item 028500, offers high-capacity protection within electrical distribution networks by interrupting excessive current during fault events. Such breakers are essential components in main industrial switchboards for safeguarding critical infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Adjustment range undelayed short-circuit release (EF007131): 1260 A
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): No
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Overload release current setting (EF002336): 252 A
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 630 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): Yes
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 800 V
