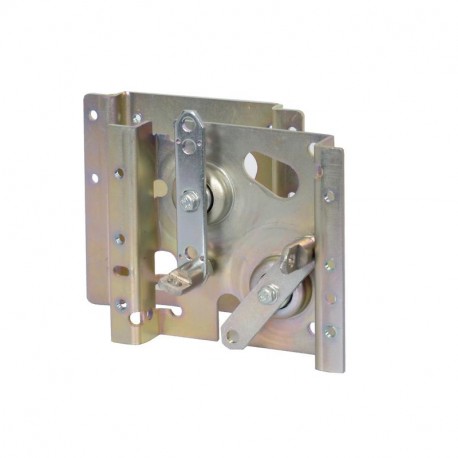

LEGRAND 028190 028190 LEGRAND DMX3 BLOCK INTERBLQ SIZE 0 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028190 LEGRAND DMX3 BLOCK INTERBLQ SIZE 0

028190

028190

LEGRAND

1 Pcs.

DMX3 BLOCK INTERBLQ SIZE 0 Interlock for DMX³ 1600 transfer switch Mechanical interlock mechanism for DMX³ 3P/4P - size 0

Automation > Accessories/spare parts for low-voltage switch technology
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Mechanical interlocking blocks are utilized in heavy switchgear assemblies to coordinate the operational states of multiple circuit breakers, preventing unsafe parallel closures or backfeeding scenarios. The Legrand 028190 hardware secures mechanical linkage between neighboring circuit protection devices.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Mechanical locking

More info

▲
  • Pack (number of units)1
  • Volume (dm3)4.41
  • Weight (g)1 239.00
Product characteristics
Equipment for transfer switches
  • The mechanical interlock is set up using cables and can interlock devices, which may be different type in a vertical or horizontal configuration
  • The interlock unit is mounted on the right-hand side of the device
  • Cable interlock to be ordered separately (cable length to be specified according to every configuration)
  • Interlock for DMX³ frame 1600
General characteristics
Equipment for DMX³ 1600 transfer switches
