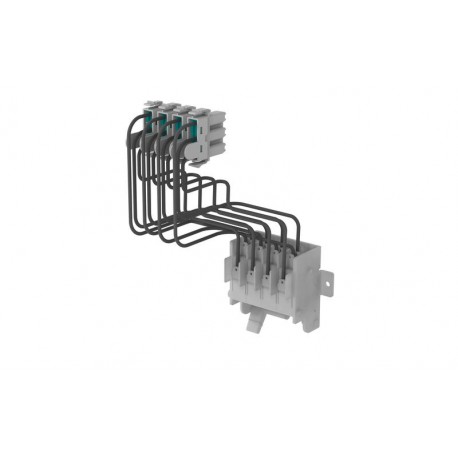

LEGRAND 028176 028176 LEGRAND DMX³ 1600 MOD 4 AUX PINS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028176 LEGRAND DMX³ 1600 MOD 4 AUX PINS

028176

028176

LEGRAND

1 Pcs.

DMX³ 1600 MOD 4 AUX PINS 4-pin auxiliary module for DMX³1600 open rack switch 4-pin auxiliary module for DMX³1600

Automation > Accessories/spare parts for low-voltage switch technology
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand auxiliary pin set integrates into high-current power circuit breakers to transmit control signals, status feedback, and interlocking data to external automation systems. These modular pin connections ensure reliable low-voltage communication within complex industrial switchgear architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): Yes
  • Spare part (EF013237): No
  • Type of accessory/spare part (EF000215): Contact set

More info

▲
DMX³ open-frame switches enable protection and control at the inlet of low-voltage installations from 630A to 6300A. DMX³-I Load Cut Disconnectors allow low-voltage circuits from 1000A to 6300A to be cut and sectioned under load. These power protection devices are available in a fixed or sectional version and can be equipped with interlocking mechanisms for mains inverters. They can be complemented with auxiliaries such as trigger coils, motorized controls, locks, front or rear sockets, separators. The electronic protection units allow precise adjustments of the protection parameters and must be ordered at the same time as the DMX³ for factory installation. The DMX³ 1600 has a complete version pre-equipped with a protection unit. The protection units can be adjusted directly on the display or in combination with a Bluetooth dongle, the parameters can be adjusted via an app.
Type of accessory/spare partDating Set
AccessoryYes
RefillNo
Width59 mm
Height60 mm
Depth35 mm
Operating Temperature-25-70 °C
Storage temperature-25-85 °C
ColourMulticolored
Halogen-freeYes
