View larger
Images are for illustrative purposes only. Please refer to data sheet for details

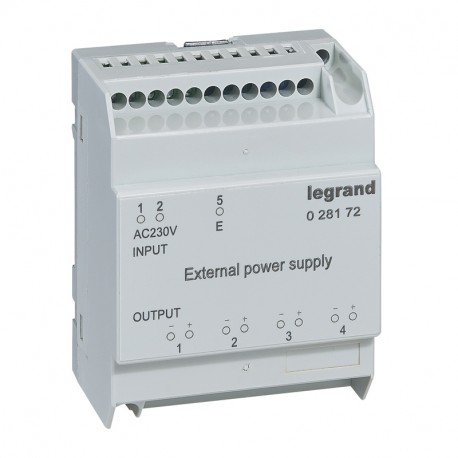

028172 LEGRAND DMX3 T0 ALIMENT EXT UND PROT
028172
028172
LEGRAND
1 Pcs.
DMX3 T0 ALIMENT EXT UND PROT
Power supply - external 230 V AC - for DMX³ 1600 electronic protection units
External power supply 230V~/= for DMX³ 1600
Automation > DC-power supply
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.72
- Weight (g)183.00
Product characteristics
Accessories for electronic protection units- External auxiliary power supply (input 230 V AC)
General characteristics
DMX³ 1600 electronic protection units- DMX³ circuit breakers must be equipped with electronic protection units (to be ordered together for factory assembly) enabling very precise adjustments of the protection conditions, while maintaining total discrimination with downstream devices
- Conform to IEC 60947-2
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 90 mm |
| Degree of protection (IP) (EF005474) | IP30 |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Wall mounting possible (EF003973) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Output voltage stabilized (EF003092) | No |
| Rated supply voltage AC 50 Hz (EF007076) | 220 V |
| Rated supply voltage AC 60 Hz (EF007077) | 220 V |
| Short-circuit-proof (EF007332) | Yes |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Max. output current 1 (EF008284) | 1 A |
| Nominal value output current 1 (EF009396) | 1 A |
| Modular version (EF001126) | Yes |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| SIL according to IEC 61508 (EF009889) | None |
| Width in number of modular spacings (EF002950) | 4 |
| Direct mounting possible (EF005689) | Yes |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| 1st secondary output voltage (EF006792) | 24 V |
| Secondary voltage adjustable (EF007002) | No |
| Depth (EF000049) | 64 mm |
| Power consumption (EF000346) | 25 VA |
| Width (EF000008) | 72 mm |
