View larger
Images are for illustrative purposes only. Please refer to data sheet for details

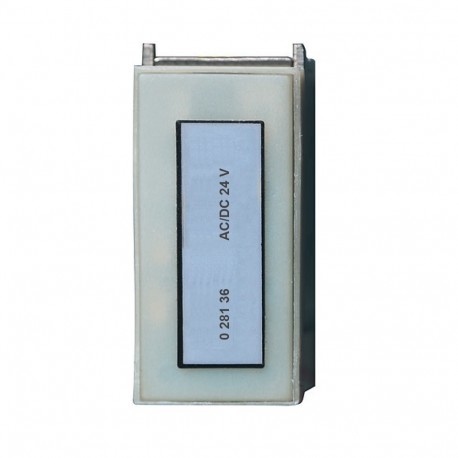

028136 LEGRAND DMX3 T0 COIL SHOOTING MT 24V
028136
028136
LEGRAND
1 Pcs.
DMX3 T0 COIL SHOOTING MT 24V
Undervoltage releases DMX³ 1600 - 24 V~/=
DMX³ 1600 - 24V~/= minimum voltage trigger coil
Automation > Under voltage coil
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.235
- Weight (g)194.00
Product characteristics
Control and signalling auxiliariesUndervoltage releases
- When the coil is de-energised, the circuit breaker will be tripped
- 24 V~/=
General characteristics
Auxiliaries, accessories and fixing devices for DMX³ 1600| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 20.4 V |
| Delayed (EF001541) | No |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for power circuit breaker (EF005863) | Yes |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Voltage type for actuating (EF008242) | AC/DC |
| Suitable for motor safety switch (EF005826) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 20.4 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 20.4 V |
