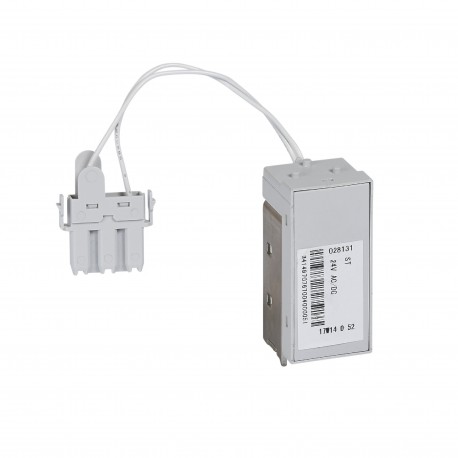

028131 LEGRAND DMX3 T0 COIL SHOOTING EC 24V
028131
028131
LEGRAND
1 Pcs.
Automation > Shunt release (for power circuit breaker)
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
028131 LEGRAND DMX3 T0 COIL SHOOTING EC 24V is a shunt trip coil designed to remotely actuate and open industrial circuit breakers during emergency conditions. Switchgear assemblers integrate these coils into electrical panels to support automated safety shutdowns and remote control workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage DC (EF003980): 21.6 V
- Number of contacts as change-over contact (EF008257): 1
- Suitable for off-load switch (EF001543): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Type of electric connection (EF003961): Flat plug-in connection
- Voltage type for actuating (EF008242): AC/DC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 0
- Suitable for overload relay (EF001545): Yes
- Suitable for motor safety switch (EF005826): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 21.6 V
- Rated control supply voltage AC 60 Hz (EF003979): 21.6 V
More info
▲- Pack (number of units)1
- Volume (dm3)0.235
- Weight (g)190.00
Shunt trip
- When energised the circuit breaker will be tripped
- 24 V~/=
