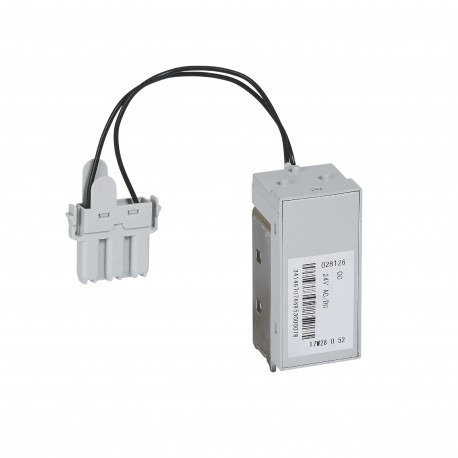

LEGRAND 028126 028126 LEGRAND DMX3 T0 COIL CLOSE 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028126 LEGRAND DMX3 T0 COIL CLOSE 24V

028126

028126

LEGRAND

1 Pcs.

DMX3 T0 COIL CLOSE 24V Closing coils DMX³ 1600 - 24 V~/= DMX³ Locking Coil 1600 - 24V~/=

Automation > Switch spool for power circuit breaker
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand closing coil facilitates the remote electrical operation of circuit breakers within industrial power distribution panels and switchgear assemblies. Units of this type integrate into the breaker mechanism to ensure reliable switching commands from control stations, enhancing operational safety and automation capabilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 24 V
  • Built as switching-on coil (EF005914): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Built as switch-off coil (EF006263): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.235
  • Weight (g)193.00
Product characteristics
Control and signalling auxiliaries
Closing coils
  • Enables remote closing of the circuit breaker if the closing spring is charged
  • 24 V~/=
General characteristics
Auxiliaries, accessories and fixing devices for DMX³ 1600
