View larger
Images are for illustrative purposes only. Please refer to data sheet for details

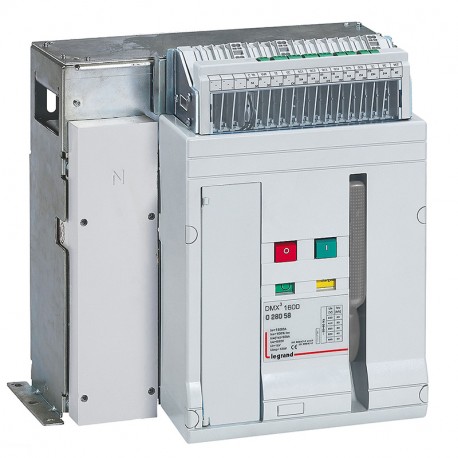

028058 LEGRAND DMX3-I 1600 50KA FIXED 4P 1600A
028058
028058
LEGRAND
1 Pcs.
DMX3-I 1600 50KA FIXED 4P 1600A
Trip free switch DMX³-I 1600 - fixed version - 4P - 1600 A
DMX³ -I 1600 Load Cutting Disconnect - Fixed - 4P - 1600A
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)107.653
- Weight (g)27 712.00
Product characteristics
Fixed version- Supplied with:
- 4 auxiliary contacts: NO/NC
- door sealing
- Frame 1600
- 4P
- In : 1600 A
General characteristics
Trip free switches DMX³-I 1600 - from 1000 to 1600 A- Conform to IEC 60947-3
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Integrated earth fault protection (EF007296) | No |
| With integrated under voltage release (EF001390) | Yes |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Motor drive integrated (EF006697) | No |
| Type of control element (EF006976) | Push button |
| Rated permanent current Iu (EF001389) | 1600 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | No |
| Position of connection for main current circuit (EF006671) | Back |
| Rated voltage (EF003977) | 230 V |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Complete device with protection unit (EF008906) | Yes |
