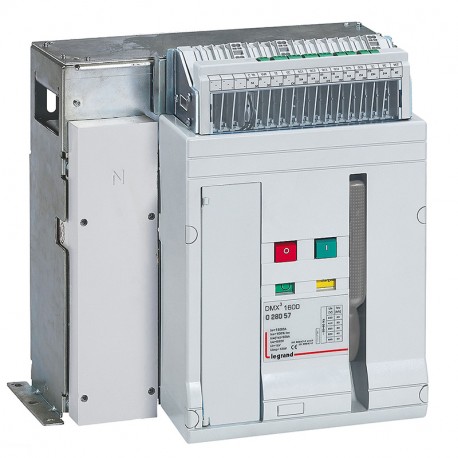

LEGRAND 028057 028057 LEGRAND DMX3-I 1600 50KA FIXED 4P 1250A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028057 LEGRAND DMX3-I 1600 50KA FIXED 4P 1250A

028057

028057

LEGRAND

1 Pcs.

DMX3-I 1600 50KA FIXED 4P 1250A Trip free switch DMX³-I 1600 - fixed version - 4P - 1250 A DMX³ -I 1600 Load Cutting Disconnect - Fixed - 4P - 1250A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 028057 LEGRAND DMX3-I 1600 50KA FIXED 4P 1250A functions as a switch-disconnector designed for secure isolation and load-breaking duties within industrial power distribution grids. Technicians install these fixed-type disconnectors in primary switchboards to safely de-energize sections of a plant during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 1250 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): No
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No
  • Complete device with protection unit (EF008906): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)107.653
  • Weight (g)27 712.00
Product characteristics
Fixed version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • door sealing
  • Frame 1600
  • 4P
  • In : 1250 A
General characteristics
Trip free switches DMX³-I 1600 - from 1000 to 1600 A
  • Conform to IEC 60947-3
