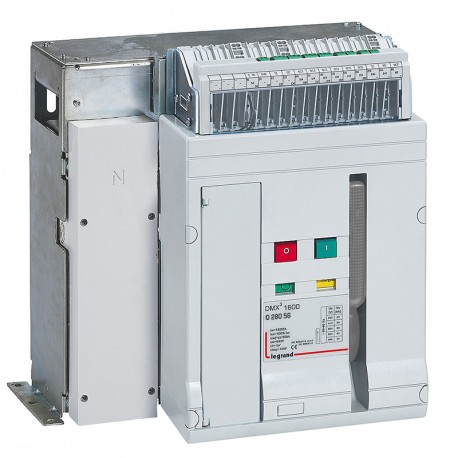

LEGRAND 028056 028056 LEGRAND DMX3-I 1600 50KA FIXED 4P 1000A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028056 LEGRAND DMX3-I 1600 50KA FIXED 4P 1000A

028056

028056

LEGRAND

1 Pcs.

DMX3-I 1600 50KA FIXED 4P 1000A Trip free switch DMX³-I 1600 - fixed version - 4P - 1000 A DMX³ -I 1600 Load Cutting Disconnect - Fixed - 4P - 1000A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 028056 circuit-breaker acts as a critical protective switch within commercial power networks, preventing damage from abnormal overcurrent events and short circuits. This type of device is integrated into primary distribution boards to ensure safe circuit disconnection and safeguard overall facility infrastructure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 1000 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): No
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No
  • Complete device with protection unit (EF008906): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)107.653
  • Weight (g)28 050.00
Product characteristics
Fixed version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • door sealing
  • Frame 1600
  • 4P
  • In : 1000 A
General characteristics
Trip free switches DMX³-I 1600 - from 1000 to 1600 A
  • Conform to IEC 60947-3
