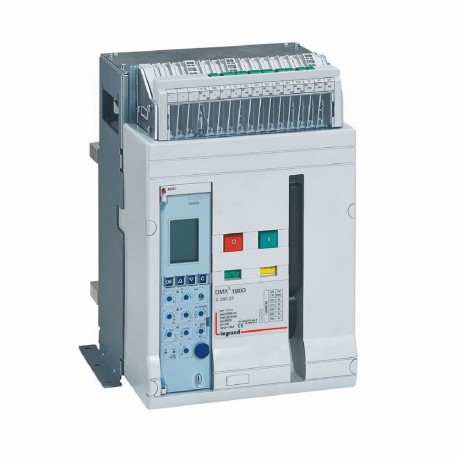

028027 LEGRAND DMX3 1600 50KA FIXED 3P 1250A
028027
028027
LEGRAND
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 028027 DMX3 circuit breaker is a robust protective device built to handle extensive current loads and prevent electrical failures in industrial power distribution systems. Heavy-duty breakers protect complex installations against unexpected surges and short circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): Yes
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 1250 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): No
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 230 V
- DIN rail (top hat rail) mounting optional (EF008904): No
- Complete device with protection unit (EF008906): Yes
More info
▲- Pack (number of units)1
- Volume (dm3)91.091
- Weight (g)24 519.00
- Supplied with :
- 4 auxiliary contacts: NO/NC
- rear orientable terminals for horizontal and vertical connection with bars
- door sealing
- Frame 1600
- 3P
- In : 1250 A
- Automatic air circuit breakers must be equipped with DMX³ 1600 electronic protection units Cat.No 0 281 64/65/66, imperatively ordered together for factory assembly
- Please ask for DMX³ order form
- Conform to IEC 60947-2
