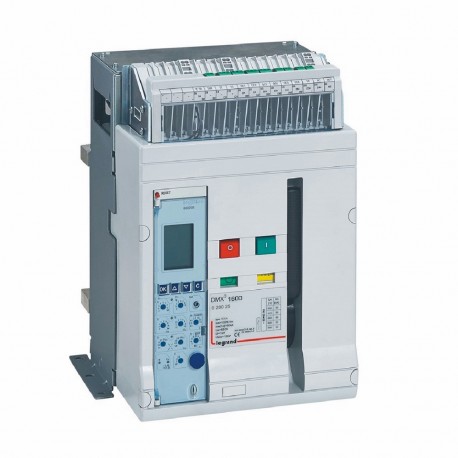

028025 LEGRAND DMX3 1600 50KA FIXED 3P 800A
028025
028025
LEGRAND
1 Pcs.
DMX3 1600 50KA FIXED 3P 800A
Air circuit breaker DMX³ 1600 lcu 50 kA - fixed version - 3P - 800 A
DMX³ 1600 Open Frame Automatic Switch - Fixed - 3P - 800A
Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand circuit-breaker (028025) serves as an essential switching and protective device in industrial power grids, designed to interrupt high fault currents and protect valuable electrical infrastructure.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP30
- Integrated earth fault protection (EF007296): No
- With integrated under voltage release (EF001390): Yes
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 3
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Push button
- Rated permanent current Iu (EF001389): 800 A
- With switched-off indicator (EF007006): Yes
- Motor drive optional (EF007386): No
- Position of connection for main current circuit (EF006671): Back
- Rated voltage (EF003977): 230 V
- DIN rail (top hat rail) mounting optional (EF008904): No
- Complete device with protection unit (EF008906): Yes
More info
▲- Pack (number of units)1
- Volume (dm3)91.091
- Weight (g)24 519.00
Product characteristics
Fixed version- Supplied with :
- 4 auxiliary contacts: NO/NC
- rear orientable terminals for horizontal and vertical connection with bars
- door sealing
- Frame 1600
- 3P
- In : 800 A
General characteristics
Air circuit breakers DMX³ 1600 - from 630 to 1600 A- Automatic air circuit breakers must be equipped with DMX³ 1600 electronic protection units Cat.No 0 281 64/65/66, imperatively ordered together for factory assembly
- Please ask for DMX³ order form
- Conform to IEC 60947-2
