LEGRAND 028024 028024 LEGRAND DMX3 1600 50KA FIXED 3P 630A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

028024 LEGRAND DMX3 1600 50KA FIXED 3P 630A

028024

028024

LEGRAND

1 Pcs.

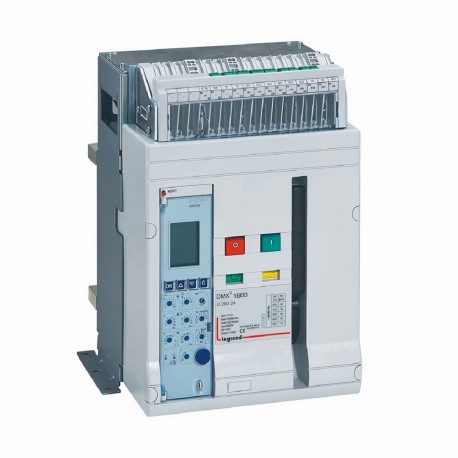

DMX3 1600 50KA FIXED 3P 630A Air circuit breaker DMX³ 1600 lcu 50 kA - fixed version - 3P - 630 A DMX³ 1600 Open Frame Automatic Switch - Fixed - 3P - 630A

Automation > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Fixed air circuit breaker 028024 LEGRAND DMX3 1600 50KA FIXED 3P 630A manages high-amp electrical distribution in industrial settings, offering robust short-circuit interruption capabilities. It acts as the main protective device for complex switchboards and electrical grids.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Integrated earth fault protection (EF007296): No
  • With integrated under voltage release (EF001390): Yes
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Push button
  • Rated permanent current Iu (EF001389): 630 A
  • With switched-off indicator (EF007006): Yes
  • Motor drive optional (EF007386): No
  • Position of connection for main current circuit (EF006671): Back
  • Rated voltage (EF003977): 230 V
  • DIN rail (top hat rail) mounting optional (EF008904): No
  • Complete device with protection unit (EF008906): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)91.091
  • Weight (g)24 519.00
Product characteristics
Fixed version
  • Supplied with :
    • 4 auxiliary contacts: NO/NC
    • rear orientable terminals for horizontal and vertical connection with bars
    • door sealing
Breaking capacity Icu 50 kA (415 V~)
  • Frame 1600
  • 3P
  • In : 630 A
General characteristics
Air circuit breakers DMX³ 1600 - from 630 to 1600 A
  • Automatic air circuit breakers must be equipped with DMX³ 1600 electronic protection units Cat.No 0 281 64/65/66, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
