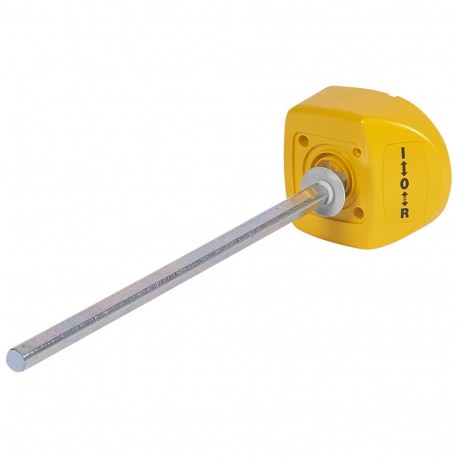

LEGRAND 026687 026687 LEGRAND DPX-IS-KIT MAN-PROLONG AMA/ROJ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026687 LEGRAND DPX-IS-KIT MAN-PROLONG AMA/ROJ

026687

026687

LEGRAND

1 Pcs.

DPX-IS-KIT MAN-PROLONG AMA/ROJ Rotary handle vari-depth IP55 - DPX-IS 250/630 front and side handle emergency Emergency rotary control - extended over door DPX-IS 250/630 - IP55

Automation > Handle for power circuit breaker
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand DPX-IS-KIT MAN-PROLONG AMA/ROJ provides a manual operating mechanism extension kit for industrial switchgear and power circuit breakers. Technicians utilize these kits to adapt panel layouts for ergonomic external control of high-voltage switching equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for emergency stop (EF001433): Yes
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for switch disconnector (EF007252): Yes
  • With extension shaft (EF001434): No
  • Colour (EF000007): Red

More info

▲
  • Pack (number of units)1
  • Volume (dm3)3.604
  • Weight (g)575.00
Product characteristics
Rotary handles
Vari-depth handle IP 55
  • Comprising: connecting rod, bracket, self-adhesive drilling template, fixing accessories (seal to maintain the IP protection up to IP 55, door lock mechanism)
  • For front and side handle device for emergency use
  • To be ordered with Cat.Nos 0 266 89 or 0 266 90
General characteristics
DPX™-IS 630 isolating switches - 400 to 630 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Padlock integrated in the handle
  • Supplied with terminal shields, and cage terminals
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures
