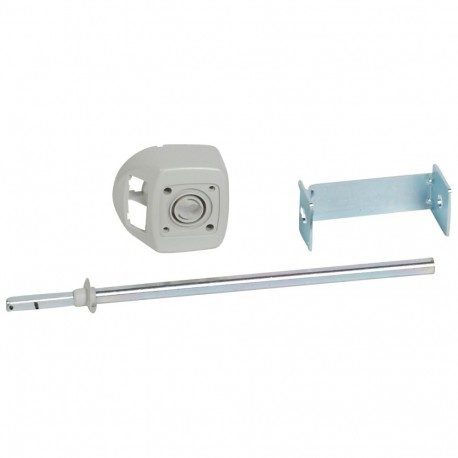

LEGRAND 026686 026686 LEGRAND DPX-IS-KIT CONTROL EXTENDED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026686 LEGRAND DPX-IS-KIT CONTROL EXTENDED

026686

026686

LEGRAND

1 Pcs.

DPX-IS-KIT CONTROL EXTENDED Rotary handle vari-depth IP55 - DPX-IS 250/630 front and side handle Standard Rotary Control - Extended Over Door DPX-IS 250/630 - IP55

Automation > Handle for power circuit breaker
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by Legrand, the 026686 LEGRAND DPX-IS-KIT CONTROL EXTENDED functions as an interface extension kit used to adapt switch disconnectors and power circuit breakers for external door-mounted handle operation. These kits ensure proper mechanical alignment and safe operator control in industrial enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for emergency stop (EF001433): No
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for switch disconnector (EF007252): Yes
  • With extension shaft (EF001434): No
  • Colour (EF000007): Black

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.35
  • Weight (g)511.00
Product characteristics
Rotary handles
Vari-depth handle IP 55
  • Comprising: connecting rod, bracket, self-adhesive drilling template, fixing accessories (seal to maintain the IP protection up to IP 55, door lock mechanism)
  • For front and side handle device
General characteristics
DPX™-IS 630 isolating switches - 400 to 630 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Padlock integrated in the handle
  • Supplied with terminal shields, and cage terminals
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures
