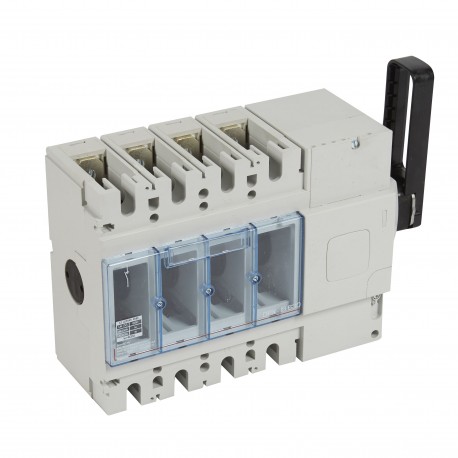

LEGRAND 026666 026666 LEGRAND DPX-IS-4P 400A M. L. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026666 LEGRAND DPX-IS-4P 400A M. L.

026666

026666

LEGRAND

1 Pcs.

DPX-IS-4P 400A M. L. Isolating switch - DPX-IS 630 without release - 4P - 400 A - right-hand side handle DPX-IS 630 - 400A - 4P - non-trip switch - right side control

Connectors > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)30.00
  • Weight (g)7 543.00
Product characteristics
DPX-IS without release
Right-hand side handle
  • 4P
  • 400 A
General characteristics
DPX™-IS 630 isolating switches - 400 to 630 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Padlock integrated in the handle
  • Supplied with terminal shields, and cage terminals
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures

ETIM for 026666 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as safety switch (EF006985) Yes
Version as maintenance-/service switch (EF006986) Yes
Number of auxiliary contacts as normally open contact (EF001376) 0
Max. rated operation voltage Ue AC (EF007355) 690 V
Version as main switch (EF006981) Yes
Number of auxiliary contacts as change-over contact (EF003531) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Interlockable (EF006281) Yes
Rated short-time withstand current lcw (EF007050) 15 kA
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Number of poles (EF001391) 4
Type of electrical connection of main circuit (EF006819) Screw connection
Version as emergency stop installation (EF006959) No
Motor drive integrated (EF006697) No
Version as reversing switch (EF009408) No
Type of control element (EF006976) Rocker lever
Conditioned rated short-circuit current Iq (EF001444) 100 kA
Rated operation power at AC-23, 400 V (EF007027) 160 kW
Rated permanent current Iu (EF001389) 400 A
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for intermediate mounting (EF007264) No
Motor drive optional (EF007386) No
Colour control element (EF007167) Black
Rated permanent current at AC-21, 400 V (EF009165) 400 A
Suitable for distribution board installation (EF007262) Yes
Rated operating voltage (EF001435) 230 V
Degree of protection (IP), front side (EF003118) IP20
