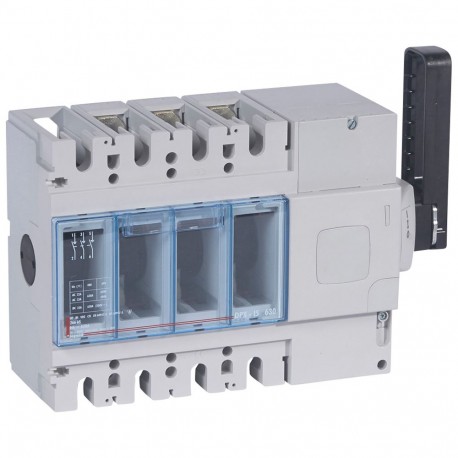

LEGRAND 026665 026665 LEGRAND DPX-IS-a 3P 630A M. L. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026665 LEGRAND DPX-IS-a 3P 630A M. L.

026665

026665

LEGRAND

1 Pcs.

DPX-IS-a 3P 630A M. L. Isolating switch - DPX-IS 630 without release - 3P - 630 A - right-hand side handle DPX-IS 630 - 630A - 3P disconnect switch - without trip - right side control

Connectors > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 026665 is a robust safety switch and switch-disconnector engineered for high-capacity electrical distribution systems and heavy industrial plants. It ensures reliable isolation and protection for high-current loads during emergency procedures or routine maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 15 kA
  • Voltage release optional (EF007491): No
  • Device construction (EF008240): Complete device in housing
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Rocker lever
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA
  • Rated operation power at AC-23, 400 V (EF007027): 252 kW

More info

▲
  • Pack (number of units)1
  • Volume (dm3)30.00
  • Weight (g)7 038.00
Product characteristics
DPX-IS without release
Right-hand side handle
  • 3P
  • 630 A
General characteristics
DPX™-IS 630 isolating switches - 400 to 630 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Padlock integrated in the handle
  • Supplied with terminal shields, and cage terminals
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures
