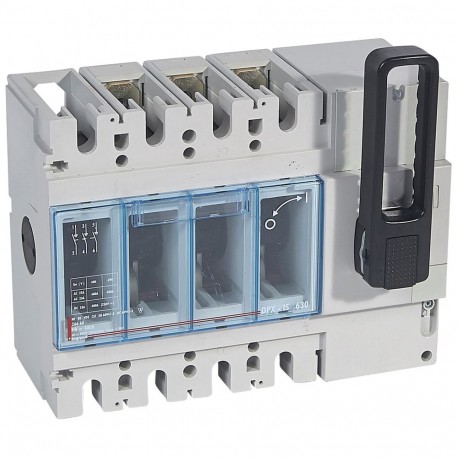

LEGRAND 026660 026660 LEGRAND DPX-IS-a 3P 400A M. F. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026660 LEGRAND DPX-IS-a 3P 400A M. F.

026660

026660

LEGRAND

1 Pcs.

DPX-IS-a 3P 400A M. F. Isolating switch - DPX-IS 630 without release - 3P - 400 A - front handle DPX-IS 630 - 400A - 3P - non-trip switch - front control

Connectors > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand DPX-IS-a 3P 400A M. F. functions as a robust load break switch designed for securely disconnecting electrical circuits under load conditions. These industrial switches are typically installed in electrical distribution panels to manage power flow and facilitate routine servicing safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 15 kA
  • Voltage release optional (EF007491): No
  • Device construction (EF008240): Complete device in housing
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Rotating button
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA
  • Rated operation power at AC-23, 400 V (EF007027): 160 kW

More info

▲
  • Pack (number of units)1
  • Volume (dm3)30.00
  • Weight (g)7 121.00
Product characteristics
DPX-IS without release
Front handle
  • 3P
  • 400 A
General characteristics
DPX™-IS 630 isolating switches - 400 to 630 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Padlock integrated in the handle
  • Supplied with terminal shields, and cage terminals
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures
