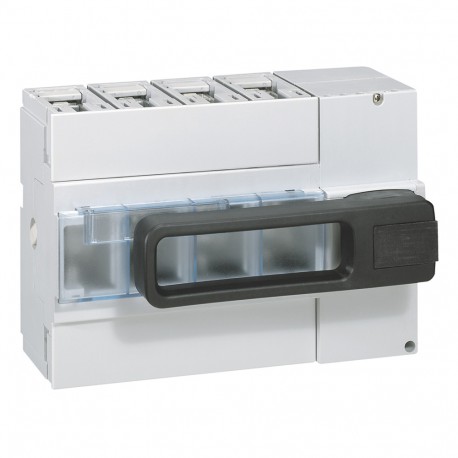

LEGRAND 026607 026607 LEGRAND DPX-IS 4P 250A M. F. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026607 LEGRAND DPX-IS 4P 250A M. F.

026607

026607

LEGRAND

1 Pcs.

DPX-IS 4P 250A M. F. Isolating switch - DPX-IS 250 without release - 4P - 250 A - front handle DPX-IS 250 - 250A - 4P - non-trip switch - front control

Connectors > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 026607 DPX-IS is a complete housed device acting as a main, safety, and maintenance switch for industrial power networks. Enclosed disconnectors of this type allow technicians to isolate heavy-duty loads securely and prevent accidental system energization during servicing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 9 kA
  • Voltage release optional (EF007491): No
  • Device construction (EF008240): Complete device in housing
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Rotating button
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA
  • Rated operation power at AC-23, 400 V (EF007027): 100 kW

More info

▲
  • Pack (number of units)1
  • Volume (dm3)6.00
  • Weight (g)2 490.00
Product characteristics
DPX-IS without release
Front handle
  • 4P
  • 250 A
General characteristics
DPX™-IS 250 isolating switches - 63 to 250 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Padlock integrated in the handle
  • Connection with cage terminals
  • Supplied with terminal shields
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on rail or on plate in XL³ enclosures
