LEGRAND 026382 026382 LEGRAND CONEX. POST. DPX 1600 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026382 LEGRAND CONEX. POST. DPX 1600 4P

026382

026382

LEGRAND

1 Pcs.

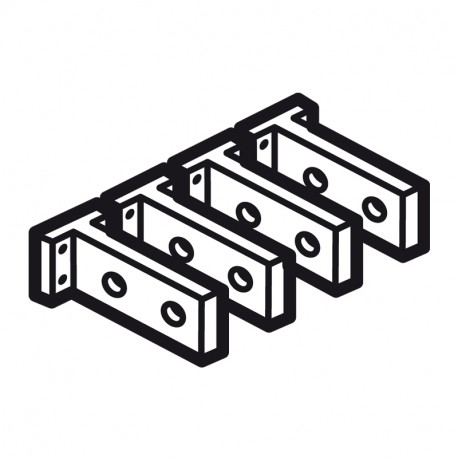

CONEX. POST. DPX 1600 4P Rear terminals (8) - for DPX 1250/1600 - short - incoming or outgoing - 4P Short rear connection DPX³/DPX-IS 1600 - power or output - 4P

Automation > Busbar terminal
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Rear connection posts facilitate organized and accessible terminal routing for multi-pole circuit breakers installed inside large electrical distribution panels. The Legrand rear connection post ensures reliable structural and electrical interfacing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for (EF000073): Flat rail
  • Width clamp (EF007092): 40 mm
  • Busbar width (EF007219): 40 mm
  • Max. rated operation current Ie (EF007356): 1600 A
  • Suitable for round conductor connection (EF007258): No
  • Busbar thickness (EF007220): 11.5 mm
  • Suitable for strip conductor connection (EF007242): No
  • Suitable for sector conductor connection (EF007260): Yes
  • Max. conductor cross section (EF004969): 480 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)12.00
  • Weight (g)7 715.00
Product characteristics
Accessories
Rear terminals
  • Used to convert the fixed version with front terminals to the fixed version with rear terminals
  • Set of incoming and outgoing rear terminals
  • Short terminals
General characteristics
DPX™-IS 1600 isolating switches - 800 to 1600 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Connection with cage terminals
  • Padlock integrated in the handle
  • Supplied with terminal shields
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
