View larger
Images are for illustrative purposes only. Please refer to data sheet for details

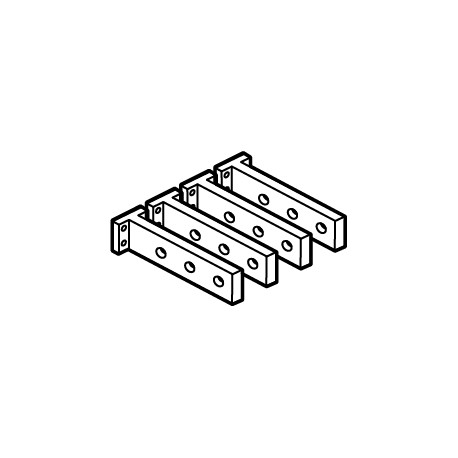

026381 LEGRAND DPX 1600 GAME C. P. 3P LONG
026381
026381
LEGRAND
1 Pcs.
DPX 1600 GAME C. P. 3P LONG
Rear terminals (6) - for DPX 1250/1600 - long - incoming or outgoing - 3P
Long rear connection DPX³/DPX-IS 1600 - power or output - 3P
Automation > Busbar terminal
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)7.696
- Weight (g)5 020.00
Product characteristics
AccessoriesRear terminals
- Used to convert the fixed version with front terminals to the fixed version with rear terminals
- Set of incoming and outgoing rear terminals
- Long terminals
General characteristics
DPX™-IS 1600 isolating switches - 800 to 1600 A- Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
- Connection with cage terminals
- Padlock integrated in the handle
- Supplied with terminal shields
- Conform to IEC 60947-3
- Category of use AC 23 A
- Accept electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
| Feature Name | Feature Value |
|---|---|
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 40 mm |
| Busbar width (EF007219) | 40 mm |
| Max. rated operation current Ie (EF007356) | 1600 A |
| Suitable for round conductor connection (EF007258) | No |
| Busbar thickness (EF007220) | 11.5 mm |
| Suitable for strip conductor connection (EF007242) | No |
| Suitable for sector conductor connection (EF007260) | Yes |
| Max. conductor cross section (EF004969) | 480 mm² |
