View larger
Images are for illustrative purposes only. Please refer to data sheet for details

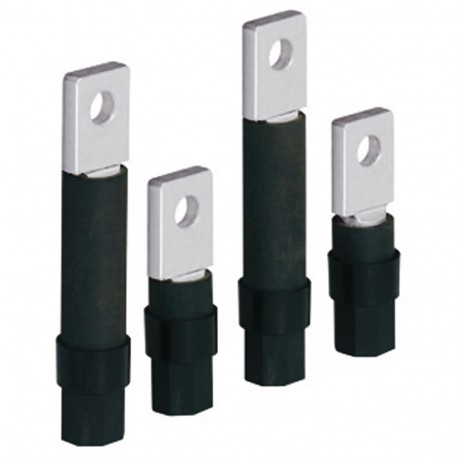

026353 LEGRAND CONEX. POST. DPX 400/630 4P
026353
026353
LEGRAND
1 Pcs.
CONEX. POST. DPX 400/630 4P
Rear terminals (4) - for DPX/DPX-IS 630 - flat - 4P
DPX³/DPX-IS 630 Swivelling Flat Rear Connection - Power or Output - 4P
Automation > Busbar terminal
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)6.00
- Weight (g)2 785.00
Product characteristics
AccessoriesRear terminals
- Set of incoming or outgoing flat terminals
General characteristics
DPX™-IS 630 isolating switches - 400 to 630 A- Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
- Padlock integrated in the handle
- Supplied with terminal shields, and cage terminals
- Conform to IEC 60947-3
- Category of use AC 23 A
- Accept electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
| Feature Name | Feature Value |
|---|---|
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 20 mm |
| Busbar width (EF007219) | 20 mm |
| Max. rated operation current Ie (EF007356) | 630 A |
| Suitable for round conductor connection (EF007258) | No |
| Busbar thickness (EF007220) | 20 mm |
| Suitable for strip conductor connection (EF007242) | No |
| Suitable for sector conductor connection (EF007260) | Yes |
| Max. conductor cross section (EF004969) | 314.16 mm² |
