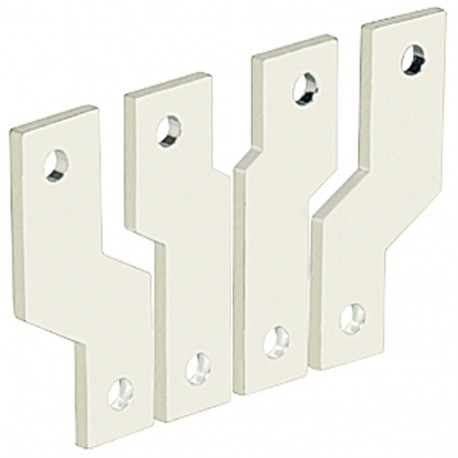

LEGRAND 026274 026274 LEGRAND SPACER TETRA DPX 1600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026274 LEGRAND SPACER TETRA DPX 1600

026274

026274

LEGRAND

1 Pcs.

SPACER TETRA DPX 1600 Spreaders - for DPX 1250/1600 - rear terminals incoming/outgoing - 4P Spacer for DPX³/DPX-IS 1600 - 4P - power or output

Automation > Connection vane/phase spreader
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 026274 LEGRAND SPACER TETRA DPX 1600 acts as a physical spacing component deployed within modular electrical enclosures to maintain proper clearance and alignment between internal circuit protection devices. Such spacers are widely used in industrial distribution panels to facilitate safe busbar routing and prevent thermal or electrical interference.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of poles (EF001589): 4

More info

▲
  • Pack (number of units)1
  • Volume (dm3)5.884
  • Weight (g)7 675.00
Product characteristics
Accessories
Spreaders
  • 4P
  • Set of incoming or outgoing spreaders
General characteristics
DPX™-IS 1600 isolating switches - 800 to 1600 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Connection with cage terminals
  • Padlock integrated in the handle
  • Supplied with terminal shields
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures
