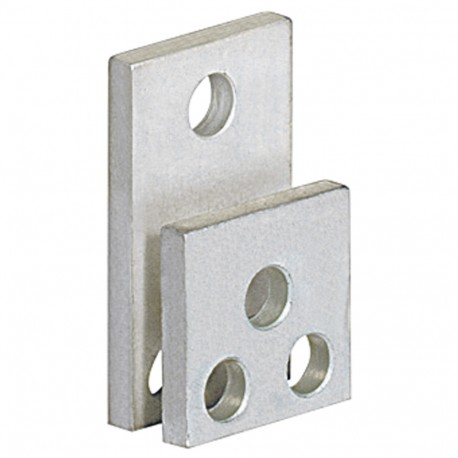

026268 LEGRAND ACCESSORY CONNECTION DPX 1600
026268
026268
LEGRAND
1 Pcs.
ACCESSORY CONNECTION DPX 1600
Extended front terminals (4) - for DPX 1250/1600 - 1600 A
DPX³/DPX-IS 1600 - 1600A extension for terminal connection
Automation > Busbar terminal
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 026268 connection accessory integrates into heavy-duty circuit breaker assemblies to facilitate secure busbar interfacing. Such hardware ensures that high electrical loads are transferred safely across switchboard infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for (EF000073): Flat rail
- Width clamp (EF007092): 50 mm
- Busbar width (EF007219): 50 mm
- Max. rated operation current Ie (EF007356): 1600 A
- Suitable for round conductor connection (EF007258): No
- Busbar thickness (EF007220): 12 mm
- Suitable for strip conductor connection (EF007242): No
- Suitable for sector conductor connection (EF007260): Yes
- Max. conductor cross section (EF004969): 600 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)1.62
- Weight (g)1 474.00
Product characteristics
AccessoriesExtended front terminals
- Long terminals for 1600 A (3 bars max. per pole)
General characteristics
DPX™-IS 1600 isolating switches - 800 to 1600 A- Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
- Connection with cage terminals
- Padlock integrated in the handle
- Supplied with terminal shields
- Conform to IEC 60947-3
- Category of use AC 23 A
- Accept electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
