View larger
Images are for illustrative purposes only. Please refer to data sheet for details

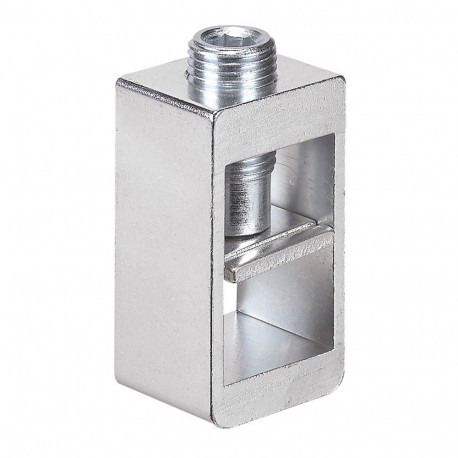

026250 LEGRAND TERMINALS DPX 400/630
026250
026250
LEGRAND
1 Pcs.
TERMINALS DPX 400/630
Cage terminals (4) - for DPX 630 - for rigid cable 300 mm² / 240 mm² flexible
Terminal block (4) for Cu/Al cables - DPX³/DPX-IS 630 - standard
Automation > Rail terminal bar
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)1.006
- Weight (g)479.00
Product characteristics
AccessoriesCage terminals
- Set of 4 terminals for cable 300 mm² max. (rigid) or 240 mm² max. (flexible)
General characteristics
DPX™-IS 630 isolating switches - 400 to 630 A- Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
- Padlock integrated in the handle
- Supplied with terminal shields, and cage terminals
- Conform to IEC 60947-3
- Category of use AC 23 A
- Accept electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 26 mm |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Screw |
| Contact safe (EF004521) | No |
| Number of poles (EF001391) | 4 |
| Depth (EF000049) | 55.9 mm |
| Width (EF000008) | 31.8 mm |
