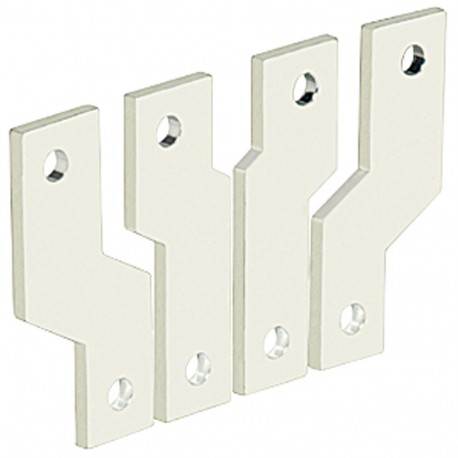

LEGRAND 026249 026249 LEGRAND ADAPT. TERMINALS DPX 630 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026249 LEGRAND ADAPT. TERMINALS DPX 630 4P

026249

026249

LEGRAND

1 Pcs.

ADAPT. TERMINALS DPX 630 4P Spreaders - for DPX/DPX-IS 630 - rear terminals incoming/outgoing - 4P Spacer (4) for DPX³/DPX-IS 630 - 4P - power or output

Automation > Connection vane/phase spreader
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a LEGRAND ADAPT. TERMINALS DPX 630 4P, this device provides the necessary structural adaptation for connecting incoming or outgoing power cables to multi-pole industrial circuit breakers. Terminal adaptors of this configuration are widely deployed in electrical panels to ensure secure, low-resistance connections across all phases.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of poles (EF001589): 4

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.32
  • Weight (g)1 027.00
Product characteristics
Accessories
Spreaders
  • 4P
  • Set of incoming or outgoing spreaders
General characteristics
DPX™-IS 630 isolating switches - 400 to 630 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Padlock integrated in the handle
  • Supplied with terminal shields, and cage terminals
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures
