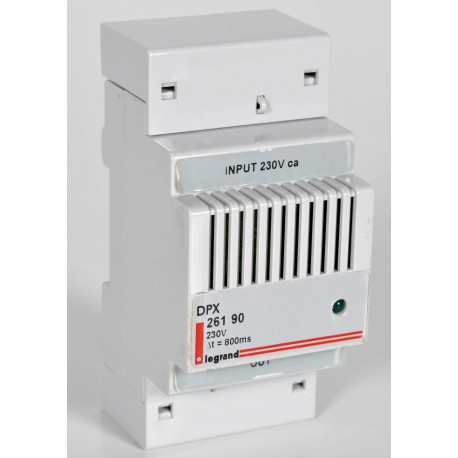

LEGRAND 026190 026190 LEGRAND DPX3 MODULE RETARD 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026190 LEGRAND DPX3 MODULE RETARD 230V

026190

026190

LEGRAND

1 Pcs.

DPX3 MODULE RETARD 230V Delay module for DPX , DPX-IS , DPX³1600 , DPX³-I1600 , DPX³630 and DPX³-I630 - 230V~ - 3 modules Delay module for minimum voltage coil 230V

Automation > Timer block
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand engineered the 026190 DPX3 delay module to provide reliable time-delayed dropping out functions within circuit breaker and switchgear assemblies. Protection accessories of this type ensure coordinated tripping and delayed signaling in industrial power distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Switching function (EF000189): Time-delay dropped out
  • Number of contacts as normally closed contact (EF008255): 0
  • Setting time (EF005922): 0.8 s
  • Number of contacts as normally open contact (EF008256): 0

More info

▲
Suitable for all construction sites, the DPX³ range offers 4 sizes of moulded case switches, for gauges between 16 A and 1600 A and breaking powers ranging from 16 to 100 kA. It also offers a wide range of versions to meet all needs: circuit breakers or electronics according to the level of protection required, fixed, sectional and removable devices according to the desired level of maintenance and residual current circuit breakers. With the DPX³ electronic switches with integrated measurement, it is possible to monitor the parameters and consumption of the different circuits in the system, without additional devices or accessories. The selectivity between the switches is optimal thanks to the performance of the DPX³ devices, in critical configurations, the dynamic selectivity and logic selectivity offered by the protection units of the electronic DPX³ ensure maximum continuity of service.
Switching functionTime Off Delay
Response Time0.8-0.8 s
Number of contacts normally opened0
Number of Normally Closed Contacts0
Number of investor contacts0
