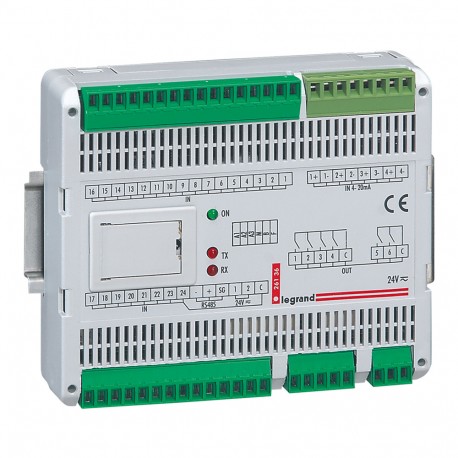

026136 LEGRAND INTERFACE SIGNAGE AND CONTROL
026136
026136
LEGRAND
1 Pcs.
INTERFACE SIGNAGE AND CONTROL
DPX electronic interface - for RS485 modbus communication - 2 modules
DPX³ and DX³ signalling and control interface
Automation > Interface module
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)1.245
- Weight (g)254.00
Product characteristics
DPX and DX³ signalling and control interface- Signalling and control interface between the power supervision system and the thermal magnetic and electronic circuit breakers.
- Equipped with analogue / digital inputs and relay outputs.
- Can handle multiple circuit breakers.
- 24 inputs for collecting information from the signalling auxiliaries on the DPX and DX³ circuit breakers: auxiliary contact NO position (1 input) or NO+NC position (2 inputs), fault signal (1 input)
- 6 outputs for: the remote control of the motor driven circuit breakers (2 outputs) and for tripping the circuit breakers for testing purposes (1 output)
- Dimension: 6 modules
- Power supply: 24 V~/=
- RS 485 link (2-wire)
- Address, speed and coding can be modified with configuration kit.
General characteristics
Power supervision system - remote control, monitoring and measurement- With the Legrand Power supervision system, circuit breakers are integrated in a supervision system
- You can therefore check the status of the circuit breakers, measure the electrical values and control the circuit breakers remotely
- MODBUS protocol
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 90 mm |
| Type of electrical connection, control sided (EF008549) | Other |
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Mounting method (EF000003) | Other |
| Pollution degree (EF006786) | 2 |
| Depth (EF000049) | 30.5 mm |
| Rated current (EF000227) | 0.33 A |
| Width (EF000008) | 110 mm |
| Rated voltage (EF000228) | 24 V |
| Number of poles (EF001391) | 6 |
