View larger
Images are for illustrative purposes only. Please refer to data sheet for details

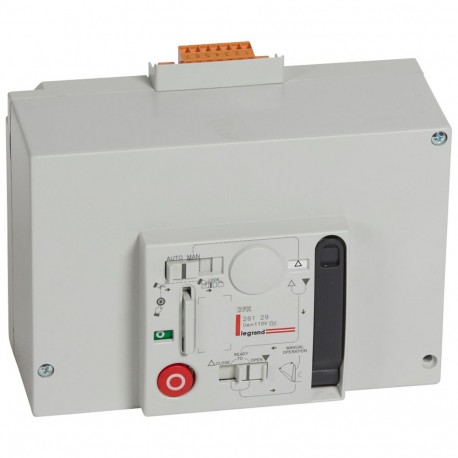

026129 LEGRAND MOTOR CONTROL DPX 1600A 110VACDC
026129
026129
LEGRAND
1 Pcs.
MOTOR CONTROL DPX=1600A 110VACDC
Motorized control for DPX³1600 up to 1600A - 110V~ or 110V=
DPX³1600 motor control up to 1600A - 110V~ or 110V=
Automation > Motor operator for power circuit-breaker
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Suitable for all construction sites, the DPX³ range offers 4 sizes of moulded case switches, for gauges between 16 A and 1600 A and breaking powers ranging from 16 to 100 kA. It also offers a wide range of versions to meet all needs: circuit breakers or electronics according to the level of protection required, fixed, sectional and removable devices according to the desired level of maintenance and residual current circuit breakers. With the DPX³ electronic switches with integrated measurement, it is possible to monitor the parameters and consumption of the different circuits in the system, without additional devices or accessories. The selectivity between the switches is optimal thanks to the performance of the DPX³ devices, in critical configurations, the dynamic selectivity and logic selectivity offered by the protection units of the electronic DPX³ ensure maximum continuity of service.
| Execution of the switching drive | Motor Actuator |
|---|---|
| Pilot Pilot Supply Voltage Rated for AC 50 Hz (Min-Max) | 110-110 V |
| Pilot Pilot Supply Nominal Voltage for AC 60 Hz (Min-Max) | 110-110 V |
| Pilot Pilot Supply Voltage Rated for DC (Min-Max) | 110-110 V |
|---|---|
| Drive Tension Type | AC/DC |
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 110 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Rated control supply voltage AC 50 Hz (EF003978) | 110 V |
| Type of switch drive (EF008233) | Motor drive |
| Rated control supply voltage AC 60 Hz (EF003979) | 110 V |
