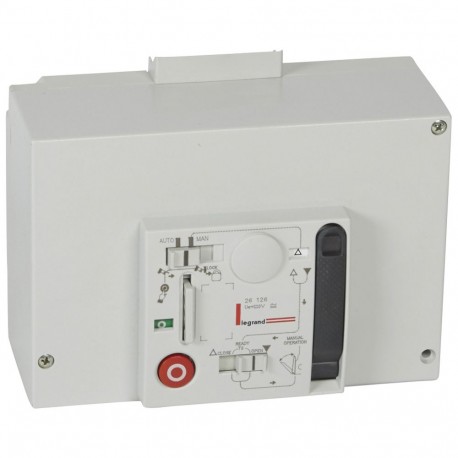

LEGRAND 026126 026126 LEGRAND MOTOR CONTROL DPX 1250A 110VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026126 LEGRAND MOTOR CONTROL DPX 1250A 110VAC

026126

026126

LEGRAND

1 Pcs.

MOTOR CONTROL DPX<=1250A 110VAC Motorized control for DPX³1600 up to 1250A - 110V~ DPX³1600 motor control up to 1250A - 110V~

Automation > Motor operator for power circuit-breaker
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 026126 LEGRAND MOTOR CONTROL DPX 1250A 110VAC functions as a motorized operating mechanism designed to facilitate remote closing, opening, and resetting of high-capacity circuit breakers in industrial switchboards. Motor operators are essential components in automated electrical distribution architecture, allowing facility operators to manage power flow safely from a centralized control room.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 110 V
  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage AC 50 Hz (EF003978): 110 V
  • Type of switch drive (EF008233): Motor drive
  • Rated control supply voltage AC 60 Hz (EF003979): 110 V

More info

▲
Suitable for all construction sites, the DPX³ range offers 4 sizes of moulded case switches, for gauges between 16 A and 1600 A and breaking powers ranging from 16 to 100 kA. It also offers a wide range of versions to meet all needs: circuit breakers or electronics according to the level of protection required, fixed, sectional and removable devices according to the desired level of maintenance and residual current circuit breakers. With the DPX³ electronic switches with integrated measurement, it is possible to monitor the parameters and consumption of the different circuits in the system, without additional devices or accessories. The selectivity between the switches is optimal thanks to the performance of the DPX³ devices, in critical configurations, the dynamic selectivity and logic selectivity offered by the protection units of the electronic DPX³ ensure maximum continuity of service.
Execution of the switching driveMotor Actuator
Pilot pilot supply nominal voltage for AC 50 Hz110-110 V
Pilot Pilot Supply Nominal Voltage for AC 60 Hz110-110 V
Pilot Pilot Supply Nominal Voltage for DC110-110 V
Drive Tension TypeAC/DC

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
