View larger
Images are for illustrative purposes only. Please refer to data sheet for details

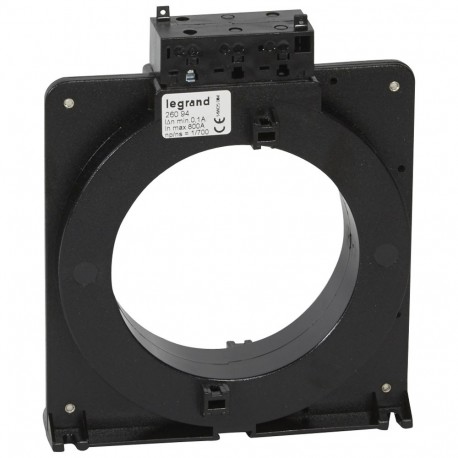

026094 LEGRAND TOROIDAL DIAM 110MM
026094
026094
LEGRAND
1 Pcs.
TOROIDAL DIAM 110MM
Coil - Ø110 mm - use with 260 88 - 1 coil per DPX
Toroidal - Ø 105mm for DPX³/DPX³ -I - 600A max
Automation > Current transformer
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)5.945
- Weight (g)620.00
Product characteristics
Coils- For use with residual current relay Cat.No 0 260 88
- 1 coil per DPX³
- Coil Ø110 mm
General characteristics
Residual current relay and coils- Add residual current protection to DPX³ trip-free switches and DPX³ MCCBs equipped with release
| Feature Name | Feature Value |
|---|---|
| Rated primary current (EF007405) | 250 A |
| Secondary connection (EF021093) | Screw connection |
| Model (EF000010) | Single-phase current converter |
| Calibrated (EF008836) | Yes |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Snap mounting (EF007462) | No |
| Opening diameter (EF005153) | 110 mm |
| With contact protection (EF008186) | Yes |
| Rated secondary current (EF007471) | 0.1 A |
| Number of primary inputs (EF006947) | 1 |
