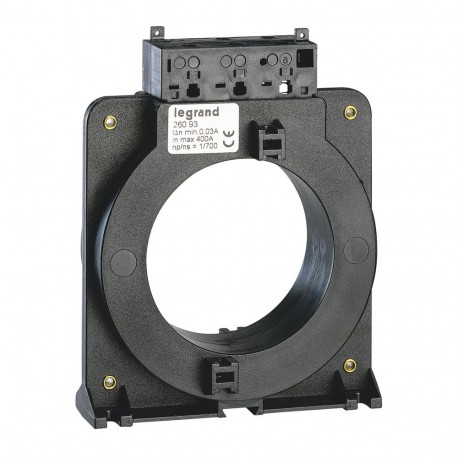

LEGRAND 026093 026093 LEGRAND TOROIDAL DIAM 80MM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

026093 LEGRAND TOROIDAL DIAM 80MM

026093

026093

LEGRAND

1 Pcs.

TOROIDAL DIAM 80MM Coil - Ø80 mm - use with 260 88 - 1 coil per DPX Toroidal - Ø 80mm for DPX³/DPX³ -I - 400A max

Automation > Current transformer
DPX3 MOLDED BOX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 026093 is a toroidal current converter designed for earth leakage and differential protection schemes within electrical distribution infrastructure. Toroidal sensors encircle live conductors to detect residual current imbalances, triggering protective devices when insulation faults or ground leakages occur. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 170 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Snap mounting (EF007462): No
  • Opening diameter (EF005153): 80 mm
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 0.05 A
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.024
  • Weight (g)370.00
Product characteristics
Coils
  • For use with residual current relay Cat.No 0 260 88
  • 1 coil per DPX³
  • Coil Ø80 mm
General characteristics
Residual current relay and coils
  • Add residual current protection to DPX³ trip-free switches and DPX³ MCCBs equipped with release
