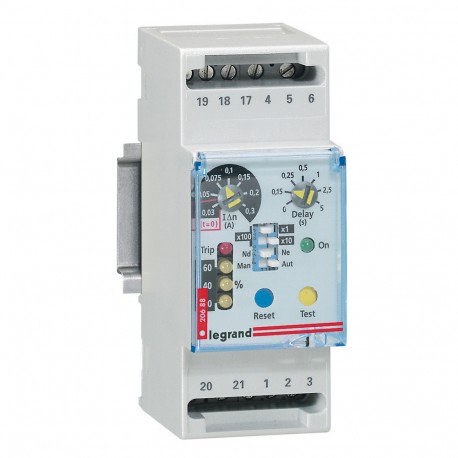

026088 LEGRAND DIFFERENTIAL RELAY 2 MODULES
026088
026088
LEGRAND
1 Pcs.
DIFFERENTIAL RELAY 2 MODULES
Residual current relay - to clip on rail - 2 modules
Adjustable differential relay, DIN profile mounting - 2mod
Automation > Residual current monitoring relay
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.36
- Weight (g)222.00
Product characteristics
Residual current relay- Detects fault currents, and, when used with a shunt trip or an undervoltage release, it gives the trip command to a MCCB or a switch
- Comprises:
- a tinged, sealable window
- an auxiliary contact
- a green Led indicating energisation
- 3 yellow Leds indicating respectively the max. phase earth insulation current: 20, 40 and 60 %
- a red Led indicating
- Fixed: exceeding of the insulation fault current value
- Flashing: breaking of one of the connections between coils and relays
- For use with coils:
- Ø35 and 80 mm with adjustable sensitivity: 0.03, 0.05, 0.075, 0.1, 0.15, 0.2, 0.3, 0.5, 0.75, 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30 A
- Ø110 to 210 mm with adjustable sensitivity: 0.3, 0.5, 0.75, 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30 A
- Ø150 mm with adjustable sensitivity: 0.5, 0.75, 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30 A
- Ø300 mm with adjustable sensitivity: 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30 A
- Adjustable trip: 0, 0.15, 0.25, 0.5, 1, 2.5, 5 seconds
- Supply voltage: 230/240 V - 50/60 Hz
- Residual current relay to clip on symmetrical rail
- Number of modules : 2
General characteristics
Residual current relay and coils- Add residual current protection to DPX³ trip-free switches and DPX³ MCCBs equipped with release
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 89 mm |
| Supply voltage AC 50 Hz (EF007532) | 195.5 V |
| Supply voltage AC 60 Hz (EF007533) | 195.5 V |
| Response value amperage 1 (EF008204) | 30 mA |
| Voltage type (operating voltage) (EF005294) | AC |
| Function (EF000030) | For three-phase supply system |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Error registration possible (EF003423) | Yes |
| Indication of difference current (EF003424) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Rated operating frequency (EF007024) | 47 Hz |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable delay-on energization time (EF008190) | 5 s |
| Depth (EF000049) | 65.6 mm |
| Width (EF000008) | 35 mm |
