View larger
Images are for illustrative purposes only. Please refer to data sheet for details

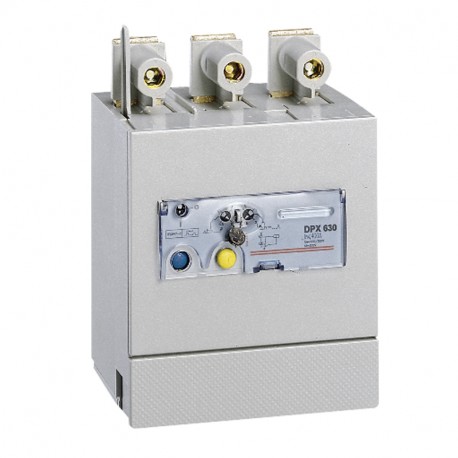

026064 LEGRAND DPX 630 B. D. A. 3P. 630A INF.
026064
026064
LEGRAND
1 unit
Automation > DPX3 MOLDED BOX
DPX3 MOLDED BOX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)7.00
- Weight (g)2 488.00
Product characteristics
Earth leakage modules- Can be fitted onto DPX³/DPX³-I 630
- Adjustable, sealable sensitivity: 0.03 - 0.3 - 1 - 3 A
- Adjustable, time delay: 0 - 0.3 - 1 - 3 s
- Test push-button
- Reset push-button
- Remote earth fault signalling contact
- Switch for mechanical tests (installation insulation test)
- Mounted underneath
- 230-500 V~
- 3P
- In : 630 A
General characteristics
DPX³ 630 - earth leakage modules| Feature Name | Feature Value |
|---|---|
| Leakage current type (EF002560) | A |
| Delay adjustable (EF001420) | Yes |
| Nominal current (EF000001) | 630 A |
| Rated fault current adjustable (EF008874) | Yes |
| Nominal voltage (EF005127) | 230 V |
| Max. delay time (EF001421) | 3000 ms |
| Number of poles (EF001391) | 3 |
| Rated fault current (EF003975) | 0.03 A |
