View larger
Images are for illustrative purposes only. Please refer to data sheet for details

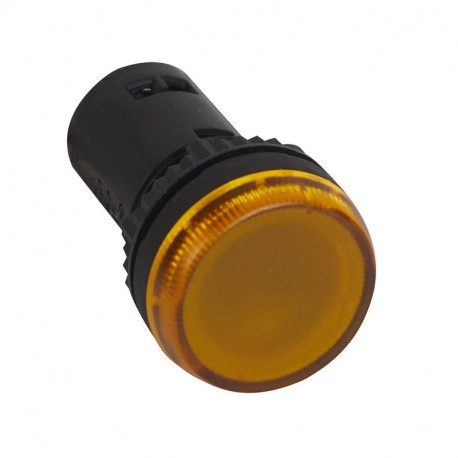

024614 LEGRAND VIEWER MONOBLOCK LED 230V TO LOVE
024614
024614
LEGRAND
10 Pcs.
VIEWER MONOBLOCK LED 230V TO LOVE
Osmoz one-piece pilot light with integrated LED to be used without electrical block - yellow 230 V~
Osmoz Monobloc Light Indicator with Integrated LED IP69 - Yellow - 230V~
Automation > Indicator light complete
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- RoHS Compliant
- Pack (number of units)10
- Volume (dm3)0.716
- Weight (g)212.00
Product characteristics
One-piece pilot lights- To be used without electrical block
- 230 V~
- Yellow
General characteristics
Osmoz control and signalling units: illuminated heads- Supplied with a fixing ring
- IP 66, IP 69K
- Conform to IEC 60947-5-1
| Feature Name | Feature Value |
|---|---|
| Material front ring (EF005972) | Plastic |
| Type of lamp socket (EF008229) | LED |
| With front ring (EF006014) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Voltage type (EF000187) | AC |
| Hole diameter (EF000079) | 22 mm |
| Type of electric connection (EF003961) | Screw connection |
| Type of lens (EF008343) | Flat |
| Construction type lens (EF006253) | Round |
| Number of indicator lights (EF001965) | 1 |
| Colour lens (EF000207) | Yellow |
| With light source (EF005905) | Yes |
| Colour front ring (EF002429) | Black |
| Rated operating voltage Ue (EF002418) | 195.5 V |
