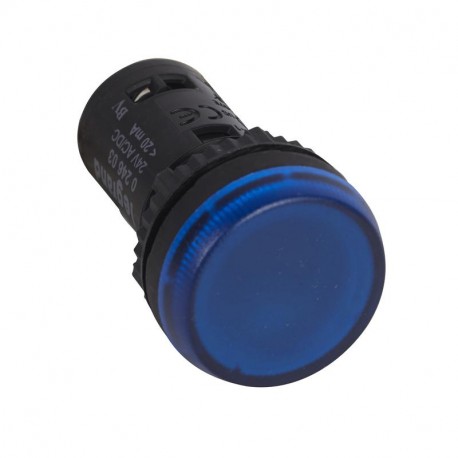

024603 LEGRAND VIEWER MONOBLOCK LED 24V BLUE
024603
024603
LEGRAND
10 Pcs.
VIEWER MONOBLOCK LED 24V BLUE
Osmoz one-piece pilot light with integrated LED to be used without electrical block - blue - 24 V~/=
Osmoz IP69 Monobloc Light Indicator with Integrated LED - Blue - 24V~
Automation > Indicator light complete
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- RoHS Compliant
- Pack (number of units)10
- Volume (dm3)0.716
- Weight (g)204.00
Product characteristics
One-piece pilot lights- To be used without electrical block
- 24 V~/=
- Blue
General characteristics
Osmoz control and signalling units: illuminated heads- Supplied with a fixing ring
- IP 66, IP 69K
- Conform to IEC 60947-5-1
| Feature Name | Feature Value |
|---|---|
| Material front ring (EF005972) | Plastic |
| Type of lamp socket (EF008229) | LED |
| With front ring (EF006014) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Voltage type (EF000187) | AC/DC |
| Hole diameter (EF000079) | 22 mm |
| Type of electric connection (EF003961) | Screw connection |
| Type of lens (EF008343) | Flat |
| Construction type lens (EF006253) | Round |
| Number of indicator lights (EF001965) | 1 |
| Colour lens (EF000207) | Blue |
| With light source (EF005905) | Yes |
| Colour front ring (EF002429) | Black |
| Rated operating voltage Ue (EF002418) | 10.8 V |
