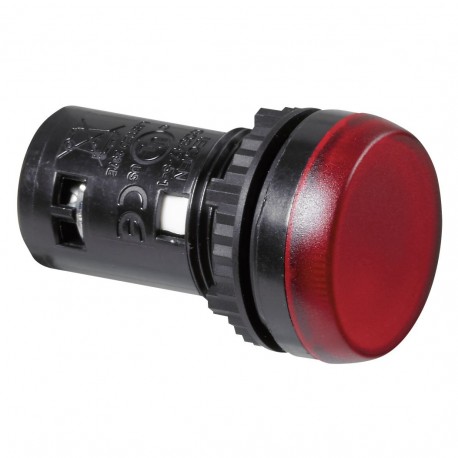

LEGRAND 024601 024601 LEGRAND VIEWER MONOBLOCK LED 24V RED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

024601 LEGRAND VIEWER MONOBLOCK LED 24V RED

024601

024601

LEGRAND

10 Pcs.

VIEWER MONOBLOCK LED 24V RED Osmoz one-piece pilot light with integrated LED to be used without electrical block - red - 24 V~/= Osmoz Monobloc Light Indicator with Integrated LED IP69 - Red - 24V~

Automation > Indicator light complete
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand viewer monoblock LED 24V red (part number 024601) is an indicator light designed for control panels and automation setups. Signal devices of this type provide visual status feedback, machine warnings, or operational states to operators on the factory floor. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material front ring (EF005972): Plastic
  • Type of lamp socket (EF008229): LED
  • With front ring (EF006014): No
  • Degree of protection (IP) (EF005474): IP66
  • Voltage type (EF000187): AC/DC
  • Hole diameter (EF000079): 22 mm
  • Type of electric connection (EF003961): Screw connection
  • Type of lens (EF008343): Flat
  • Construction type lens (EF006253): Round
  • Number of indicator lights (EF001965): 1
  • Colour lens (EF000207): Red
  • With light source (EF005905): Yes
  • Colour front ring (EF002429): Black
  • Rated operating voltage Ue (EF002418): 10.8 V

More info

▲
  • RoHS Compliant
  • Pack (number of units)10
  • Volume (dm3)0.716
  • Weight (g)202.00
Product characteristics
One-piece pilot lights
  • To be used without electrical block
With integrated Led
  • 24 V~/=
  • Red -
General characteristics
Osmoz control and signalling units: illuminated heads
  • Supplied with a fixing ring
  • IP 66, IP 69K
  • Conform to IEC 60947-5-1
