View larger
Images are for illustrative purposes only. Please refer to data sheet for details

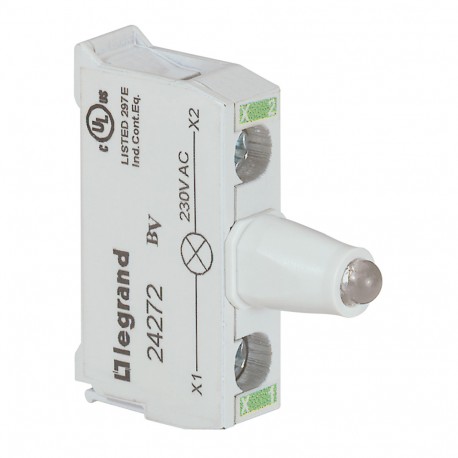

024272 LEGRAND GREEN 230V P/CX LUM LED BLOC
024272
024272
LEGRAND
1 Pcs.
GREEN 230V P/CX LUM LED BLOC
Osmoz electrical block - for control station illuminated - green 230 V~
Osmoz LED light block for button panel - screw connection - 230V~ - green
Automation > Lamp holder block for control circuit devices
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.08
- Weight (g)16.00
Product characteristics
Specific blocks- Contact block mounted on control station base
- 230 V~
- Green
General characteristics
Osmoz control and signalling units control stations to be equipped- Empty control stations to be equipped with:
- illuminated or non-illuminated heads
- specific blocks for control stations
| Feature Name | Feature Value |
|---|---|
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Rated voltage Ue at AC 50 Hz (EF007029) | 195.5 V |
| Lamp type (EF002423) | LED |
| Type of fastening (EF002442) | Floor fastening |
| With integrated diode (EF001400) | Yes |
| With integrated voltage decreasing resistor (EF001399) | Yes |
| Voltage type for actuating (EF008242) | AC |
| Rated voltage Ue at AC 60 Hz (EF007030) | 195.5 V |
| Transformer integrated (EF001358) | No |
| Colour light source (EF001402) | Green |
| Lamp holder (EF000048) | None |
| With light source (EF005905) | Yes |
