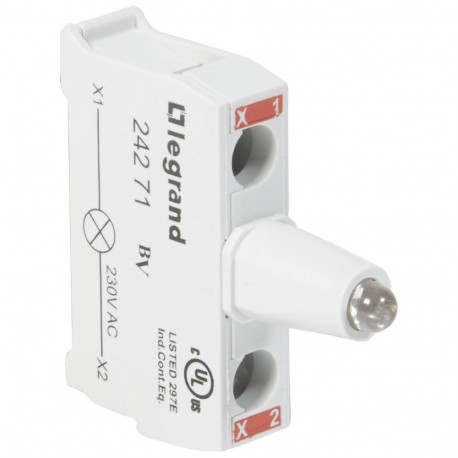

LEGRAND 024271 024271 LEGRAND LUM LED VERM 230V P/CX PAD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

024271 LEGRAND LUM LED VERM 230V P/CX PAD

024271

024271

LEGRAND

1 Pcs.

LUM LED VERM 230V P/CX PAD Osmoz electrical block - for control station illuminated - red 230 V~ Osmoz LED light block for button panel - screw connection - 230V~ - red

Automation > Lamp holder block for control circuit devices
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand luminescent LED unit serves as an industrial pilot light and visual indicator in electrical enclosures, offering reliable status monitoring for machinery. Indicator lights of this type are widely deployed across distribution boards and control desks to communicate operational modes or fault conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connection type auxiliary circuit (EF006820): Screw connection
  • Rated voltage Ue at AC 50 Hz (EF007029): 195.5 V
  • Lamp type (EF002423): LED
  • Type of fastening (EF002442): Floor fastening
  • With integrated diode (EF001400): Yes
  • With integrated voltage decreasing resistor (EF001399): Yes
  • Voltage type for actuating (EF008242): AC
  • Rated voltage Ue at AC 60 Hz (EF007030): 195.5 V
  • Transformer integrated (EF001358): No
  • Colour light source (EF001402): Red
  • With light source (EF005905): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.08
  • Weight (g)20.00
Product characteristics
Specific blocks
  • Contact block mounted on control station base
Illuminated LED blocks
  • 230 V~
  • Red
General characteristics
Osmoz control and signalling units control stations to be equipped
  • Empty control stations to be equipped with:
    • illuminated or non-illuminated heads
    • specific blocks for control stations
