View larger
Images are for illustrative purposes only. Please refer to data sheet for details

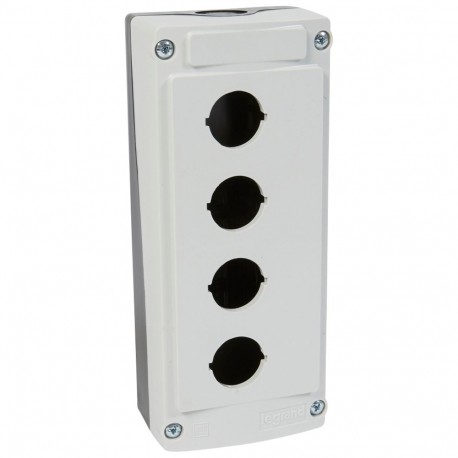

024204 LEGRAND BOITIER VIDE 4 TROUS GREY
024204
024204
LEGRAND
1 Pcs.
BOITIER VIDE 4 TROUS GREY
Osmoz control station to be equipped - IP66 - IK07 - 4 holes - grey
Osmoz 4-hole empty button panel - Grey
Automation > Enclosure for control circuit devices
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)1.763
- Weight (g)246.00
Product characteristics
Control stations (to be equipped) IP 66 - IK 07- Possibility to mount 3 electrical blocks per hole
- 4 holes - grey
General characteristics
Osmoz control and signalling units control stations to be equipped- Empty control stations to be equipped with:
- illuminated or non-illuminated heads
- specific blocks for control stations
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 4 |
| Height (EF000040) | 173 mm |
| Degree of protection (IP) (EF005474) | IP67 |
| Colour housing cover (EF001373) | Grey |
| Housing material (EF001596) | Plastic |
| Diameter openings (EF000243) | 22.5 mm |
| Depth (EF000049) | 47.9 mm |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material quality (EF024143) | Other |
| Width (EF000008) | 74 mm |
| Degree of protection (NEMA) (EF011959) | 4X |
